    Sealed Gauge Smart Digital Differential Pressure Transmitter

    Ask Lasest Price
    Brand Name : IVAN
    Model Number : AF93420IIC
    Price : $250.00 - $300.00/pieces
    Supply Ability : 1000 Plant/Plants per Month
    • Product Details
    • Company Profile

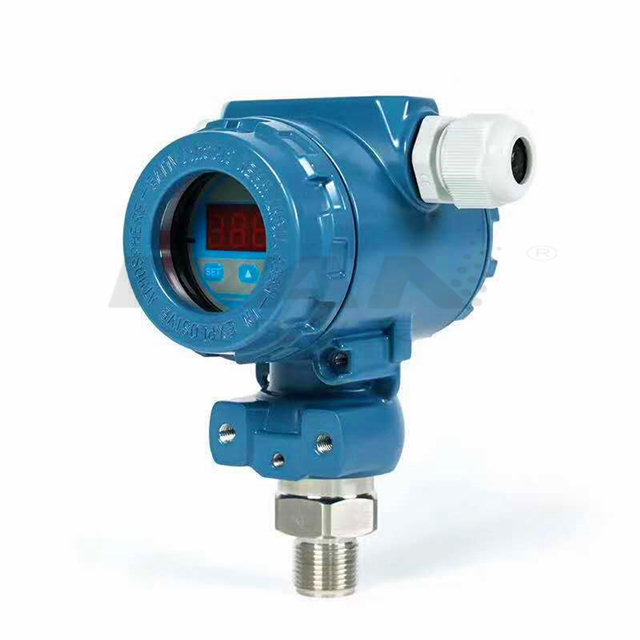

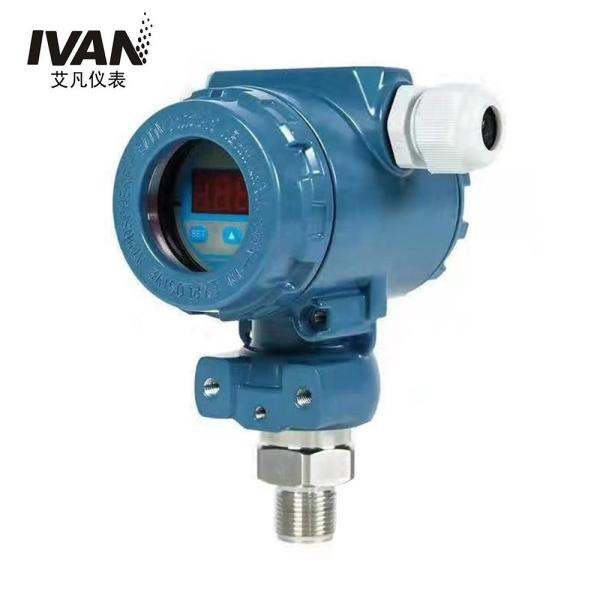

    Sealed Gauge Smart Digital Differential Pressure Transmitter

    Product Description
    Sealed Gauge Smart Digital Differential Pressure Transmitter
    Description.
    AF805 pressure transmitter uses HT series piezoresistive silicon oil-filled sensor as the signal measuring element. Signal
    processing circuit located in the stainless steel housing, can convert sensor signal into standard output signal. All the products
    through components and semi-finished products test, finished products burn-in screening, are with stable and reliable performance.
    Have strong anti-interference performance, can working in harsh environment conditions for long term.
    Sealed Gauge Smart Digital Differential Pressure Transmitter
    Application
    * Compatible with 316LSS,noncorrosive gases & liquids.

    * Special use in harsh environment conditions
    Sealed Gauge Smart Digital Differential Pressure Transmitter
    Feature
    * Wide range, cast aluminium & explosion-proof housing,
    * various pressure port
    * Various output signal, scene adjustable
    * Multiple protect, strong anti-interference capability.
    Marking: ExiaIICT6.
    Sealed Gauge Smart Digital Differential Pressure Transmitter
    Measurement Range
    -0.1….0~0.01...~100MPa
    Proof pressure
    ≤1.5X rated pressure or 110MPa which ever is less
    Pressure type
    Gauge, absolute ,sealed gauge
    Accuracy
    ±0.25%(Typical) ±0.5%(Max.)
    Long term stability
    ±0.2%F.S/year
    Operating Temperature Range
    -20℃~80℃
    Storage Temperature Range
    -40℃~120℃
    Power supply
    15~30VDC
    Output signal
    4~20mA 0~10/20mA 0/1~5VDC
    Pressure port
    M20×1.5 or customize
    material
    1Cr18Ni9Ti stainless steel
    Diaphragm material
    316L
    O-ring
    Fluororubber
    Electrical housing
    Cast aluminium alloy(2088housing)
    Insulation resistance
    100MΩ,100VDC
    Protection
    IP65
    Sealed Gauge Smart Digital Differential Pressure Transmitter
    Recommend Products
    Packing & Delivery
    Sealed Gauge Smart Digital Differential Pressure Transmitter
    Sealed Gauge Smart Digital Differential Pressure Transmitter
    Company Profile

    Founded in 2011, Beijing Ifpen Instrument Enterprise, which is adjacent to the beautiful political and cultural center, is located in Beijing Daxing Industrial Development Zone. Our company has a professional, innovative technical team and a standardized production team. Over the years, we have been achieved zero breakthrough in turbulence jump by committing to the production and R&D of industrial instruments and meters and focusing on the R&D and exploration in the field of "wind speed and air volume". After the continuous evolution of the hot ball, hot wire and hot film principles, as well as the exclusive secondary calibration method, we are well-known in the industry as high precision and high stability, breaking the conventional method of using the differential pressure principle to detect air volume in the traditional industry and breaking through the error value of micro wind speed measurement. IVAN has persisted in serving new and old customers with "Innovation, Quality, Integrity" since its foundation. "The heart of innovation, serving the world", IVAN focuses on R&D, provides high-quality products and services, and is committed to the quality road of production enterprises.
    Sealed Gauge Smart Digital Differential Pressure Transmitter
    Exhibition
    Sealed Gauge Smart Digital Differential Pressure Transmitter
    Certifications
    Sealed Gauge Smart Digital Differential Pressure Transmitter
    FAQ
    Q1. Why choose IVAN?
    A: Founded in 2011, IVAN is a leading manufacturer in the instrumentation industry, providing OEM & ODM services.
    Q2. Could I get sample?
    A: Yes, sample order is acceptable, but the sample cost and freight need to be charged.
    Q3. What is the term of payment?
    A: 100% payment in advance by T/T.
    Q4. What is the delivery time of IVAN?
    A: Generally, it will be 7-15 working days after receiving payment.
    Q5. How about IVAN validity of quotation?
    A: It is usually 30 days because the freight and exchange rates may fluctuate.
    Q6. What is your normal delivery way?
    A: Goods will be sent by DHL/FEDEX/UPS/EMS/TNT or other proposed forwarders.
    Q7. How about the package?
    A: Standard export wooden case or normal export carton.
    Q8. Do you test all your goods before delivery?
    A: Yes, we will test 100% before delivery.
    If you have any questions, please feel free to contact us!
