    Industrial-Grade and Portable Pipe Leakage Tester with Liquid Crystal Screen Display

    Ask Lasest Price
    Brand Name : IVAN
    Model Number : AF6900
    Supply Ability : 50 Unit/Units per Month
    Price : $6,250.00/units >=1 units
    • Product Details
    • Company Profile

    Industrial-Grade and Portable Pipe Leakage Tester with Liquid Crystal Screen Display

    Product Description

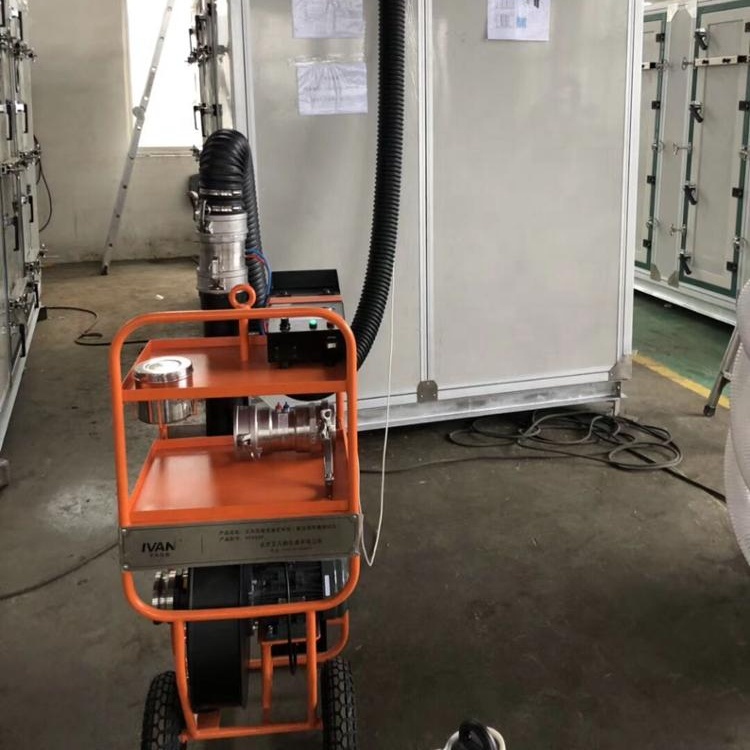

    Pipeline air leakage tester is mainly used for air-conditioning pipeline tightness test. It can detect the section pipeline and

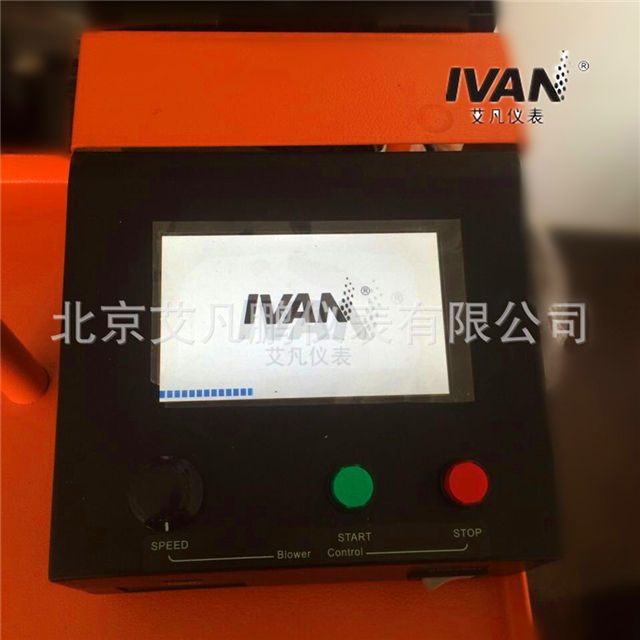

    the main pipeline after the installation of the whole system to ensure the working efficiency of the air-conditioning system and avoid energy waste. The instrument is tested according to the relevant identification standards, which can directly determine whether the pipeline sealing is qualified. Using touch screen operation, LCD color screen display, good human-computer interface is convenient for user operation.
    Industrial-Grade and Portable Pipe Leakage Tester with Liquid Crystal Screen Display
    Industrial-Grade and Portable Pipe Leakage Tester with Liquid Crystal Screen Display
    Industrial-Grade and Portable Pipe Leakage Tester with Liquid Crystal Screen Display
    Industrial-Grade and Portable Pipe Leakage Tester with Liquid Crystal Screen Display
    Industrial-Grade and Portable Pipe Leakage Tester with Liquid Crystal Screen Display
    Industrial-Grade and Portable Pipe Leakage Tester with Liquid Crystal Screen Display
    Industrial-Grade and Portable Pipe Leakage Tester with Liquid Crystal Screen Display
    Industrial-Grade and Portable Pipe Leakage Tester with Liquid Crystal Screen Display
    Model
    AF 6900
    Air Flow
    Ranges
    Flow Grid: 21 to 377 CFM (36 to 640 m3/h)
    Nozzle: 2 to 21 CFM (4 to 36 m3/h)
    Accuracy
    2.5 % of Reading±0.1 m3/h
    Resolution
    0.01 m3/h
    Pressure
    Ranges
    ± 10 in.wg (± 2500 Pa)
    Accuracy
    1% of Reading ± 1 Pa
    Resolution
    0.1 Pa
    Temperature
    Ranges
    32 to 140 °F (0 to 60 °C)
    Accuracy
    ±0.5 °C
    Resolution
    0.1 °C
    Absolute Pressure
    Ranges
    20.6 to 38.3 in.Hg (70 to 130kPa)
    Accuracy
    2% of Reading
    Resolution
    0.1kPa
    Power Source
    AF 6900-0E
    110-120V, 1 Phase, 50/60Hz,16A
    AF 6900-1E
    220-240V, 1 Phase, 50/60Hz,10A
    Weight
    Approx.75kg
    Dimensions
    W21 x D20 x H47 inches (54 x 50 x 120 mm)
    Data logging
    Up to 1000 measurements
