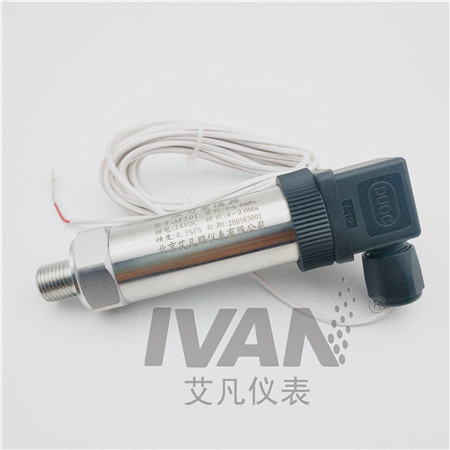

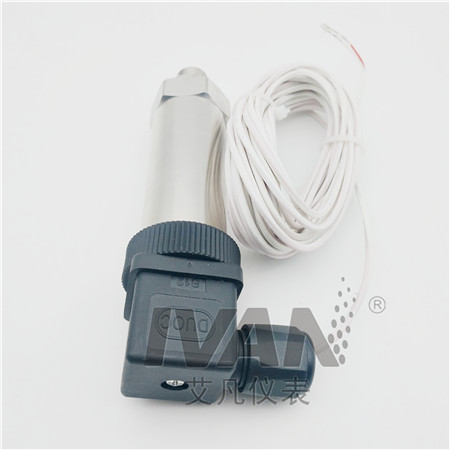

    Market 4-20mA Analog Sensor Piezoresistive Pressure Transmitter With ODM

    Ask Lasest Price
    Brand Name : IVANPER
    Model Number : AF501
    Supply Ability : 1000 Unit/Units per Week
    Price : $25.00 - $28.00/units
    • Product Details
    • Company Profile

    Market 4-20mA Analog Sensor Piezoresistive Pressure Transmitter With ODM

    low price silicon oil-filled isolated membrane steam water pressure transmitter
    Product Description
    Market 4-20mA Analog Sensor Piezoresistive Pressure Transmitter With ODM
    Market 4-20mA Analog Sensor Piezoresistive Pressure Transmitter With ODM
    Specification
    Measurement Range
    -0.1...0~0.01...~100MPa
    Proof pressure
    ≤1.5X rated pressure or 110MPa which ever is less
    Pressure type
    Gauge, absolute ,sealed gauge
    Accuracy
    ±0.25%(typical) ±0.5%(Max.)
    Long term stability
    ±0.1%F.S/year(typical) ±0.2%F.S/year(Max.)
    Temperature Error- Zero
    ±0.03%F.S/℃(≤100KPa) ±0.02%F.S/℃(>100KPa)
    Temperature Error -Span
    ±0.03%F.S/℃(≤100KPa) ±0.02%F.S/℃(>100KPa)
    Operating Temperature Range
    -20℃~80℃
    Storage Temperature Range
    -40℃~120℃
    Power supply
    15~30VDC
    Output signal
    4~20mA 0~10/20mA 0/1~5/10VDC
    Pressure port
    M20×1.5,G1/2 or customize
    Housing material
    1Cr18Ni9Ti stainless steel
    Diaphragm material
    316L
    O-ring
    Fluororubber
    Cable
    polyethylene
    Insulation resistance
    100MΩ,100VDC
    Protection
    IP65
    Packing & Delivery
    Market 4-20mA Analog Sensor Piezoresistive Pressure Transmitter With ODM
    Market 4-20mA Analog Sensor Piezoresistive Pressure Transmitter With ODM
    To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
    Company Profie
    Market 4-20mA Analog Sensor Piezoresistive Pressure Transmitter With ODM
    Market 4-20mA Analog Sensor Piezoresistive Pressure Transmitter With ODM
    Market 4-20mA Analog Sensor Piezoresistive Pressure Transmitter With ODM
    Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
    PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
    Recommend Products
    Packing & Delivery
    Market 4-20mA Analog Sensor Piezoresistive Pressure Transmitter With ODM
    Market 4-20mA Analog Sensor Piezoresistive Pressure Transmitter With ODM
    Company Profile

    Beijing Ifpen Instrument EnterpriseWas founded in 2011, adjacent to the beautiful political and cultural center, located in Daxing Industrial Development Zone, Beijing.The company has a professional, innovative technica team and standardized production team. Over the years, we have been committed to the research and development of industrial instrument production, focusing on the research and development of the field of"wind speed and air volume", and achieving zero breakthrough of turbulence jump. Since its establishment, the company insists on"innovation, quality, integrity" to serve the new and old customers. Ivan products not only occupy a high proportion of market share in China, as a national brand, go abroad, exported to the world.
    Market 4-20mA Analog Sensor Piezoresistive Pressure Transmitter With ODM
    Exhibition
    Market 4-20mA Analog Sensor Piezoresistive Pressure Transmitter With ODM
    Certifications
    Market 4-20mA Analog Sensor Piezoresistive Pressure Transmitter With ODM
    Market 4-20mA Analog Sensor Piezoresistive Pressure Transmitter With ODM
    FAQ
    FAQ for better and easy cooperation:
    1.Why choose IVAN?
    We are the leading manufactuer, OEM & ODM service areoffered
    2.How about the sample of IVAN product?
    We could send you the samples but the freight and the sample are charged.
    4.How about IVAN payment term?
    TT &L/C &Westem Union(40% deposit, the balance before shipment)
    5.How about BIOBASE delivery time?
    Within 7-15 workdays after receving deposit
    6.How about IVAN validity of quotation?
    Usualy 30 days as the shipping freight and exchange rate can be fluctuant.
    7.What is the shipping port?
    FOB to Qingdao Port, China(also can ship according to customers' request)
    8.How about the package?
    Bubble film+ Coton +Standard export wooden case.
    9.How to inspect the goods?
    Products i be checked by our QC staffist then our proejct manager. Cient can come and check bythemselves or third party check is available.
