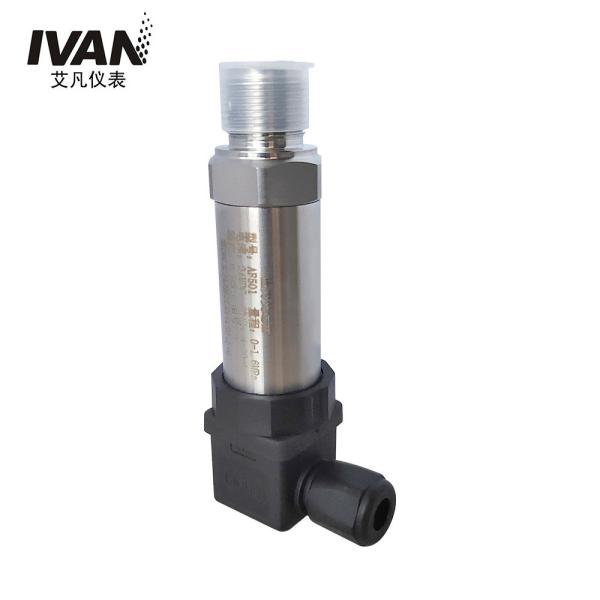

    4-20mA Output Pressure Transmitter for Air/Water Pressure 15-30V DC Power Supply

    Ask Lasest Price
    Brand Name : IVANPER
    Model Number : AF501
    Supply Ability : 500 Unit/Units per Week
    Price : $25.00 - $28.00/units
    • Product Details
    • Company Profile

    4-20mA Output Pressure Transmitter for Air/Water Pressure 15-30V DC Power Supply

    Product Description

    Specification
    Measurement Range-0.1...0~0.01...~100MPa
    Proof Pressure≤1.5X rated pressure or 110MPa which ever is less
    Pressure TypeGauge, absolute, sealed gauge
    Accuracy±0.25%(typical) ±0.5%(Max.)
    Long Term Stability±0.1%F.S/year(typical) ±0.2%F.S/year(Max.)
    Temperature Error-Zero±0.03%F.S/℃(≤100KPa) ±0.02%F.S/℃(>100KPa)
    Temperature Error-Span±0.03%F.S/℃(≤100KPa) ±0.02%F.S/℃(>100KPa)
    Operating Temperature Range-20℃~80℃
    Storage Temperature Range-40℃~120℃
    Power Supply15~30V DC
    Output Signal4~20mA, 0~10/20mA, 0/5~5/10V DC
    Pressure PortM20x1.5, G1/2 or Customized
    Main Part MaterialStainless Steel
    Diaphragm Material316L
    O-ringFluororubber
    CablePolyethylene
    Insulation Resistance100MΩ,100V DC
    IP GradeIP 65

    4-20mA Output Pressure Transmitter for Air/Water Pressure 15-30V DC Power Supply


    Company Information

    Founded in 2011, Beijing Ifpen Instrument Enterprise, which is adjacent to the beautiful political and cultural center, is located in Beijing Daxing Industrial Development Zone. Our company has a professional, innovative technical team and a standardized production team. Over the years, we have been achieved zero breakthrough in turbulence jump by committing to the production and R&D of industrial instruments and meters and focusing on the R&D and exploration in the field of "wind speed and air volume". After the continuous evolution of the hot ball, hot wire and hot film principles, as well as the exclusive secondary calibration method, we are well-known in the industry as high precision and high stability, breaking the conventional method of using the differential pressure principle to detect air volume in the traditional industry and breaking through the error value of micro wind speed measurement. IVAN has persisted in serving new and old customers with "Innovation, Quality, Integrity" since its foundation. "The heart of innovation, serving the world", IVAN focuses on R&D, provides high-quality products and services, and is committed to the quality road of production enterprises.

    4-20mA Output Pressure Transmitter for Air/Water Pressure 15-30V DC Power Supply4-20mA Output Pressure Transmitter for Air/Water Pressure 15-30V DC Power Supply
    Exhibition

    4-20mA Output Pressure Transmitter for Air/Water Pressure 15-30V DC Power Supply

    Certifications

    4-20mA Output Pressure Transmitter for Air/Water Pressure 15-30V DC Power Supply4-20mA Output Pressure Transmitter for Air/Water Pressure 15-30V DC Power Supply

    Packaging & Shipping

    4-20mA Output Pressure Transmitter for Air/Water Pressure 15-30V DC Power Supply4-20mA Output Pressure Transmitter for Air/Water Pressure 15-30V DC Power Supply

    FAQ

    Q1. Why choose IVAN?
    A: Founded in 2011, IVAN is a leading manufacturer in the instrumentation industry, providing OEM & ODM services.

    Q2. Could I get sample?

    A: Yes, sample order is acceptable, but the sample cost and freight need to be charged.
    Q3. What is the term of payment?
    A: 100% payment in advance by T/T.
    Q4. What is the delivery time of IVAN?
    A: Generally, it will be 7-15 working days after receiving payment.
    Q5. How about IVAN validity of quotation?
    A: It is usually 30 days because the freight and exchange rates may fluctuate.
    Q6. What is your normal delivery way?

    A: Goods will be sent by DHL/FEDEX/UPS/EMS/TNT or other proposed forwarders.

    Q7. How about the package?
    A: Standard export wooden case or normal export carton.
    Q8. Do you test all your goods before delivery?

    A: Yes, we will test 100% before delivery.

    If you have any questions, please feel free to contact us!
